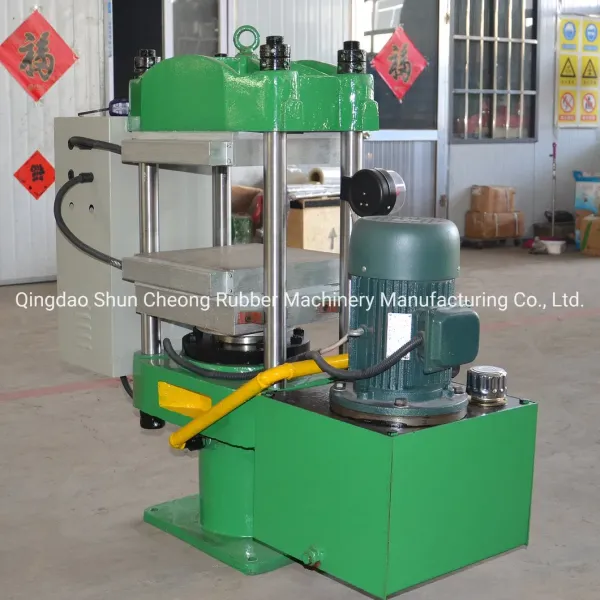

Laboratory Plate Rubber Mat Vulcanizing Press
Product Overview
25T Column Rubber Vulcanizing Press designed for vulcanizing various silicone products including bracelets, mobile phone cases, and watch straps. Features PLC control and customizable configurations to meet specific production requirements.
Key Specifications
Model: XLB-350x350x1
Certifications: CE, ISO 9001:2015, SGS
Total Pressure: 0.25 MN
Main Motor Power: 2.2 Kw
Plate Unit Area Pressure: 2.04 MPa
Overall Dimensions: 1400*480*1380 mm
Heating Methods: Electricity, Oil, Steam
Production Capacity: 20 Sets/Month
Main Features
- Frame Structure: Bottom pressing form with upward movement for efficient pressure application
- Durable Construction: Oil cylinder made of nodular cast iron for enhanced compressive strength and wear resistance
- Advanced Sealing: Oil-proof rubber seal rings ensure effective sealing during operation
- Precision Control: Combined oil pump with control valve for precise ascending/descending movements
- Clean Heating: Tubular electric-heating components eliminate air pollution and maintain workshop cleanliness
- User-Friendly Design: Rational structure with convenient control and reliable safety features
Technical Parameters
| Parameter Type |
XLB-240*240*1/4 |
XLB-350*350*1/4 |
XLB-400*400*1/4 |
XLB-500*500*1/4 |
XLB-600*600*1/4 |
XLB-700*700*1/4 |
XLB-750*850*1/4 |
XLB-900*900*2Q |
| Total Pressure (MN) |
0.15 |
0.25 |
0.5 |
0.63 |
1.00 |
1.20 |
1.60 |
2.00 |
| Plate Distance (mm) |
125 |
125 |
125 |
125 |
125 |
125 |
200 |
300 |
| Working Layer No. |
1-4 |
1-4 |
1-4 |
1-4 |
1-4 |
1-4 |
1-4 |
2 |
| Unit Area Pressure of Hot Plate (Mpa) |
2.60 |
2.04 |
3.13 |
2.52 |
2.77 |
2.45 |
2.51 |
2.47 |
| Plunger Stroke (mm) |
250 |
250 |
250 |
250 |
250/400 |
250 |
400 |
400 |
| Heating Mode |
Electricity |
Electricity |
Electricity/Stream |
Electricity/Stream |
Electricity/Stream |
Stream |
Electricity/Stream |
Stream |
| Motor Power (KW) |
2.2 |
2.2 |
2.2 |
2.2 |
2.2 |
2.2 |
3 |
5.5 |
| Size (L*W*H) (mm) |
1200*350*1300 |
1400*480*1380 |
1600*500*1480 |
1750*600*1540 |
1880*720*1680 |
2000*850*1750 |
2250*1200*2200 |
1400*900*2400 |
Manufacturer Profile
Qingdao Shun Cheong Rubber Machinery Manufacturing Co., Ltd specializes in high-technology rubber machinery production. The company holds ISO9001:2015, CE, and SGS certifications and serves global markets including tire manufacturing, rubber conveyor belt production, and waste tire recycling.
Quality Commitment
- All components undergo strict quality inspection before storage
- Comprehensive pre-shipment testing including 24-hour pressure testing at 1.25x rated capacity
- 3-year warranty on main parts, 1-year on wearing parts
- Free technical support and prompt service response
- On-site engineering support available when needed
Customer Support
- Custom machine design with engineering drawings
- Production progress updates with photos
- Complete documentation including installation guides and maintenance manuals
- Overseas engineer services and operator training
- Comprehensive after-sales support
