CE/ISO9001 Certified 75L Rubber Kneader with 110KW Driving Motor for Industrial Rubber Mixing

Product Categories
Qingdao Shun Cheong Rubber machinery Manufacturing Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

CE/ISO9001 Certified 75L Rubber Kneader with 110KW Driving Motor for Industrial Rubber Mixing

Brand Name : SFC

Model Number : X(S)N-75 X(S)N-110 X(S)N-150

Certification : ISO9001/CE/SGS

Place of Origin : China

MOQ : 1 Set

Price : 6,000.00-60,000 .00 USD per Set

Payment Terms : T/T

Supply Ability : 50 Sets per Month

Delivery Time : 50 days

Packaging Details : wooden cases or container

Model : X(S)N-75

Working Volume (L) : 75

Driving Motor Power (KW) : 110

Tilting Motor Power (KW) : 4

Tilting Angle (°) : 140

Pressure Of Colling Water (MPA) : 0.3-0.4

Overal Dimension (L*W*H) (mm) : 3325*2615*3105

Gross Weight (KG) : 9500

Total Volume (L) : 170

Contact Now

CE/ISO9001 Rubber Kneader / Rubber Making Machine
Product Overview

This CE/ISO9001 certified rubber kneader and rubber making machine represents advanced mixing technology for rubber and plastic product manufacturing.

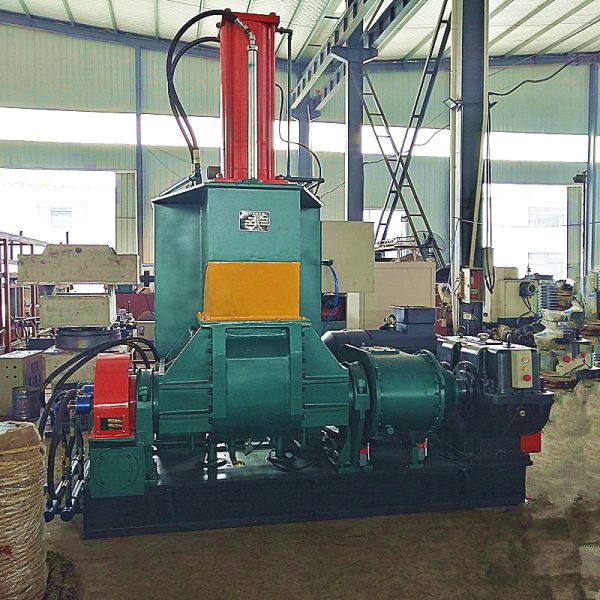

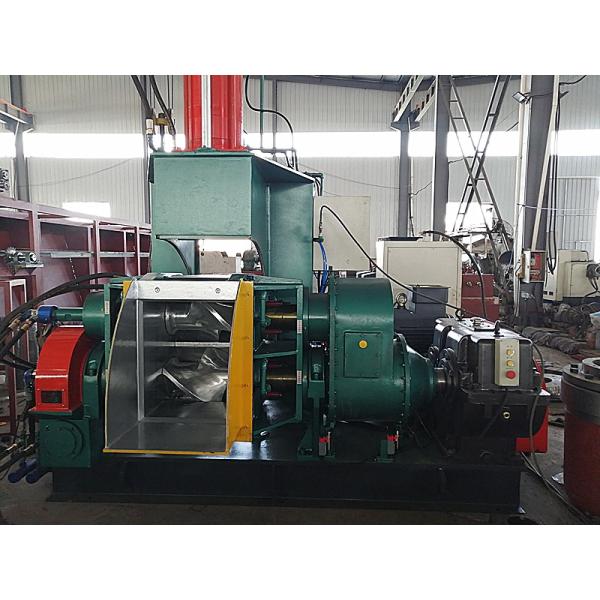

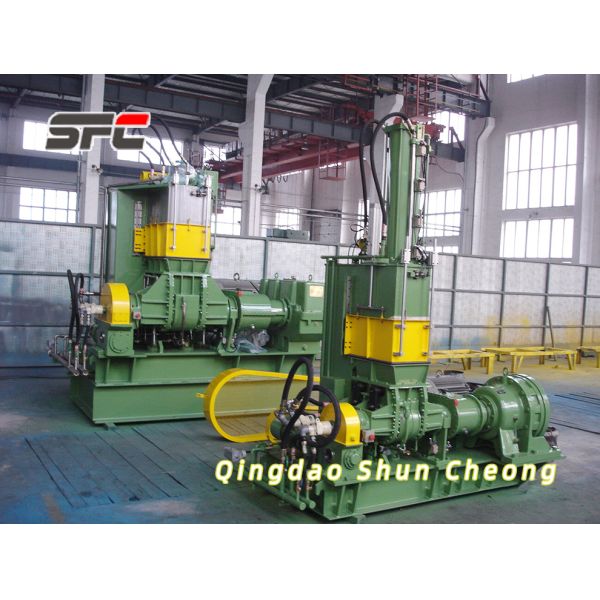

Reference Photos
CE/ISO9001 Certified 75L Rubber Kneader with 110KW Driving Motor for Industrial Rubber Mixing CE/ISO9001 Certified 75L Rubber Kneader with 110KW Driving Motor for Industrial Rubber Mixing CE/ISO9001 Certified 75L Rubber Kneader with 110KW Driving Motor for Industrial Rubber Mixing CE/ISO9001 Certified 75L Rubber Kneader with 110KW Driving Motor for Industrial Rubber Mixing CE/ISO9001 Certified 75L Rubber Kneader with 110KW Driving Motor for Industrial Rubber Mixing CE/ISO9001 Certified 75L Rubber Kneader with 110KW Driving Motor for Industrial Rubber Mixing CE/ISO9001 Certified 75L Rubber Kneader with 110KW Driving Motor for Industrial Rubber Mixing CE/ISO9001 Certified 75L Rubber Kneader with 110KW Driving Motor for Industrial Rubber Mixing CE/ISO9001 Certified 75L Rubber Kneader with 110KW Driving Motor for Industrial Rubber Mixing CE/ISO9001 Certified 75L Rubber Kneader with 110KW Driving Motor for Industrial Rubber Mixing
Technical Specifications
Item Unit X(S)N-3 X(S)N-20 X(S)N-35 X(S)N-55 X(S)N-75 X(S)N-110 X(S)N-150 X(S)N-200
Working Volume of Mixing Chamber L 3 20 35 55 75 110 150 200
Driving Motor Power KW 5.5 37 55 75 110 185 220 280
Titling Angel ° 140 140 140 140 140 140 11 11
Pressure of Compressed Air MPa 0.5-0.8 0.6-0.8 0.5-0.8 0.6-0.8 0.6-0.8 0.6-0.8 0.6-0.8 0.6-0.8
Compressed Air Flow Rate m³/min ≥0.3 ≥0.7 ≥0.9 ≥1.0 ≥1.0 ≥1.5 ≥2.0 ≥4.0
Pressure of Cooling Water MPa 0.2~0.4 0.2~0.4 0.3~0.4 0.3~0.4 0.3~0.4 0.3~0.4 0.3~0.4 0.3~0.4
Pressure of Heating Steam MPa 0.5~0.8 0.5~0.8 0.5~0.8 0.5~0.8 0.5~0.8 0.5~0.8 0.5~0.8 0.5~0.8
Dimensions(LxWxH) mm 2000x906x2200 2630x1520x2560 3200x1900x2950 3230x1927x2958 3325x2615x3105 4075x2712x3580 4250x2750x4106 4250x3400x4200
Product Features
  • High-tech equipment developed for mixing both high-power and low-power rubber and plastic products
  • Advanced timing control and temperature timing control functions
  • Flexible heating options: steam heating, electric heating, or heat transfer oil heating based on user requirements
  • Ideal mixing equipment for producing sofa cushions and foam plastics for footwear
Company Profile

Qingdao Shun Cheong Rubber Machinery Manufacturing Co., Ltd. is an established Chinese manufacturer founded in 2007 with over 10 years of experience in rubber machinery manufacturing. The company holds ISO 9001:2008, SGS, and CE certifications.

Main Products: Rubber kneader/rubber mixing mill; various plate vulcanizing presses; 2-roll/3-roll/4-roll rubber calenders; rubber batch off coolers; waste tire recycling lines; reclaimed rubber production lines; conveyor belt production lines; rubber seals extruding & vulcanizing lines.

Global Reach: Our machinery has been exported to America, Mexico, India, Vietnam, South Africa, Singapore, Malaysia, Indonesia, Australia, Sri Lanka, and many other countries and regions.

Our Services
  • Custom machine design with engineering drawings for customer confirmation
  • Production progress tracking with regular photo updates
  • Complete documentation including packing list, commercial invoice, and bill of lading
  • Free technical support including foundation DWG, installation drawings, user guides, maintenance manuals, and part drawings
Contact Information

Qingdao Shun Cheong Rubber Machinery Manufacturing Co., Ltd.

Address: No.1 Kangting Road, Huangdao District, Qingdao City, China

Email: sales-6@sfcjx.com

WhatsApp/Mobile: +86 18306487221
